Origin Filter

You can administer origin-dependent dynamic data (purchased parts, cost center rates) in Data Administration. The origin filter determines which data records are displayed in the project’s List Style or report and are relevant for costing. Please note that dynamic data settings (File > Settings > System > Dynamic Data) can also be applied to filtered data.

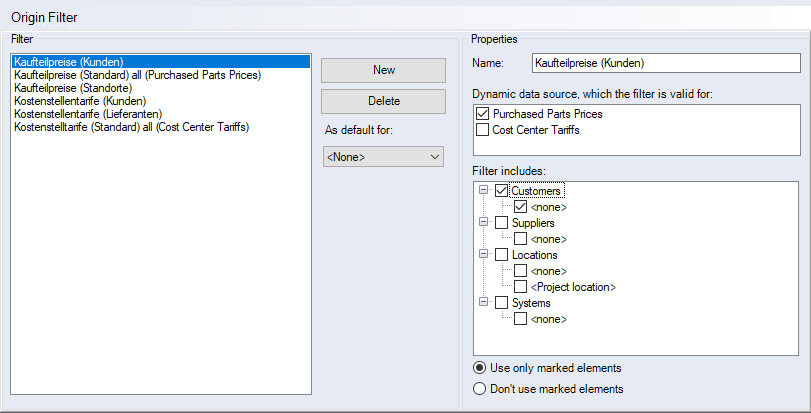

Origin Filter Interface

"Filter" group

  • List of origin filters:

    Displays a list of the origin filters.

  • "New" button

    Create a new origin filter.

  • "Delete" button

    Deletes the highlighted origin filter from the list.

  • "As default for" combobox

    Select dynamic data (purchased part prices and cost center rates) for which the filter is used by default.

"Properties" group

  • "Name" entry field

    Enter the name of the origin filter.

  • "Dynamic data source which the filter is valid for" selection

    • "Purchased Parts Prices" checkbox: The selected filter applies for purchased part prices.

    • "Cost Center Rates" checkbox: The selected filter applies for cost center rates.

  • "Filter includes" tree structure for origins

    Displays a tree structure of the origins from FACTON master data. Activated origins are accordingly marked for the filter.

    Hint

    If you only stored the origin type in Data Administration but not the origin of a purchased or standard part, you may filter <none> origins to find empty ones.

    The "<Project location>" can also be used as origin filter so that the location selected in the production planning (Project Cockpit) for determining location-specific purchased part prices or cost center tariffs.

  • "Use only marked elements" option

    When selected, only the origins selected in the tree structure are used when filtering.

  • "Don’t use marked elements" option

    When selected, all origins selected in the tree structure will not be used when filtering.
